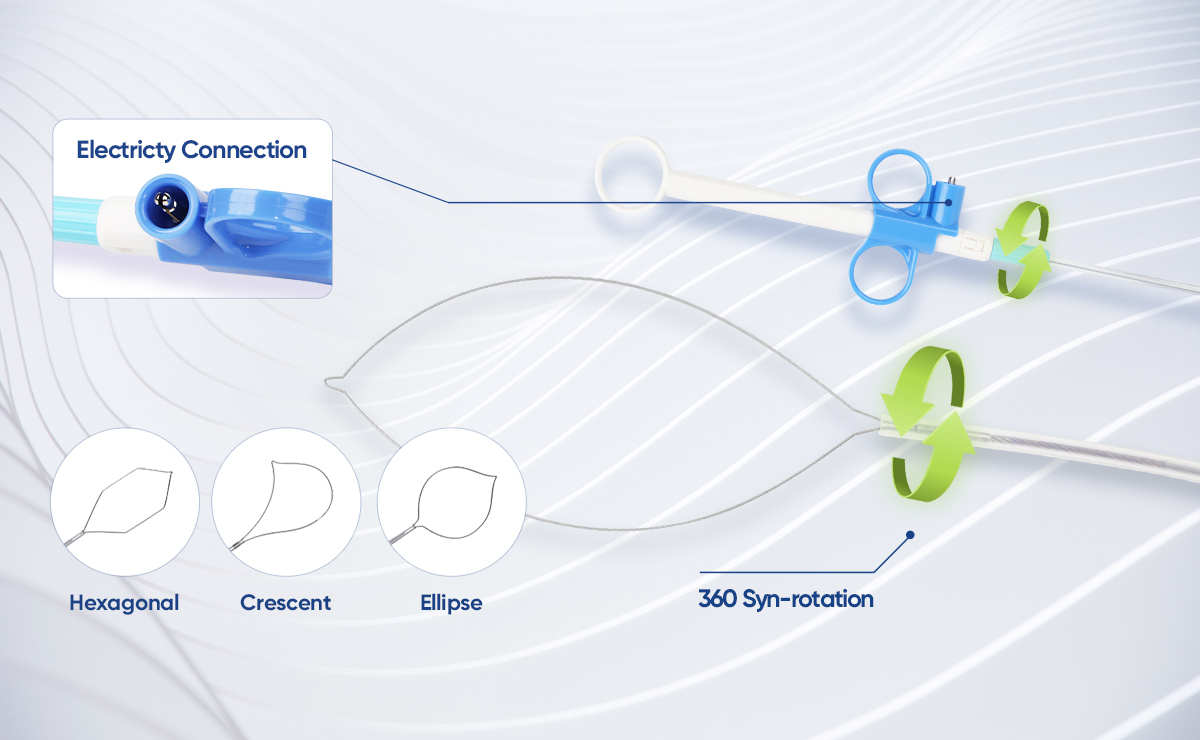

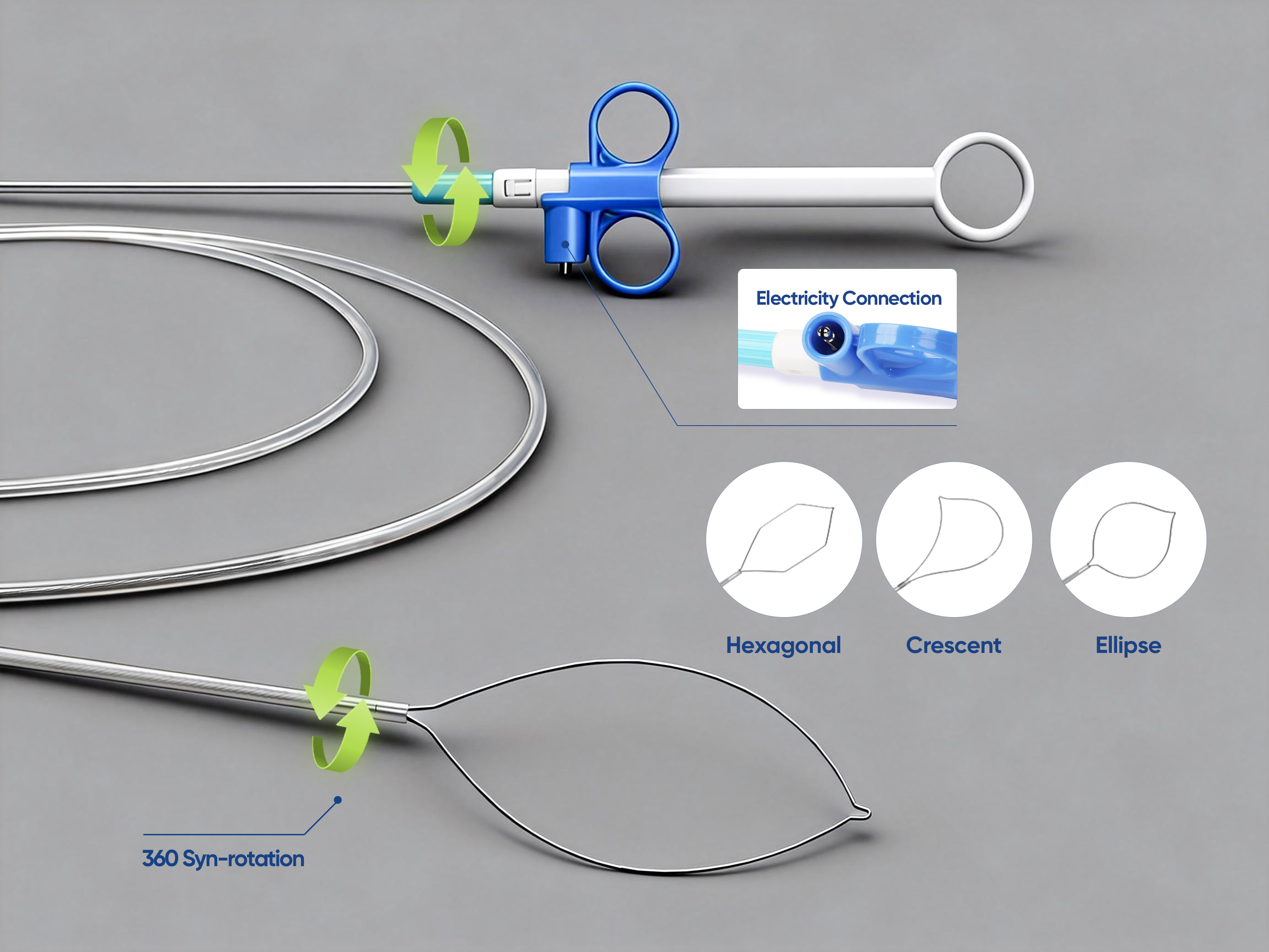

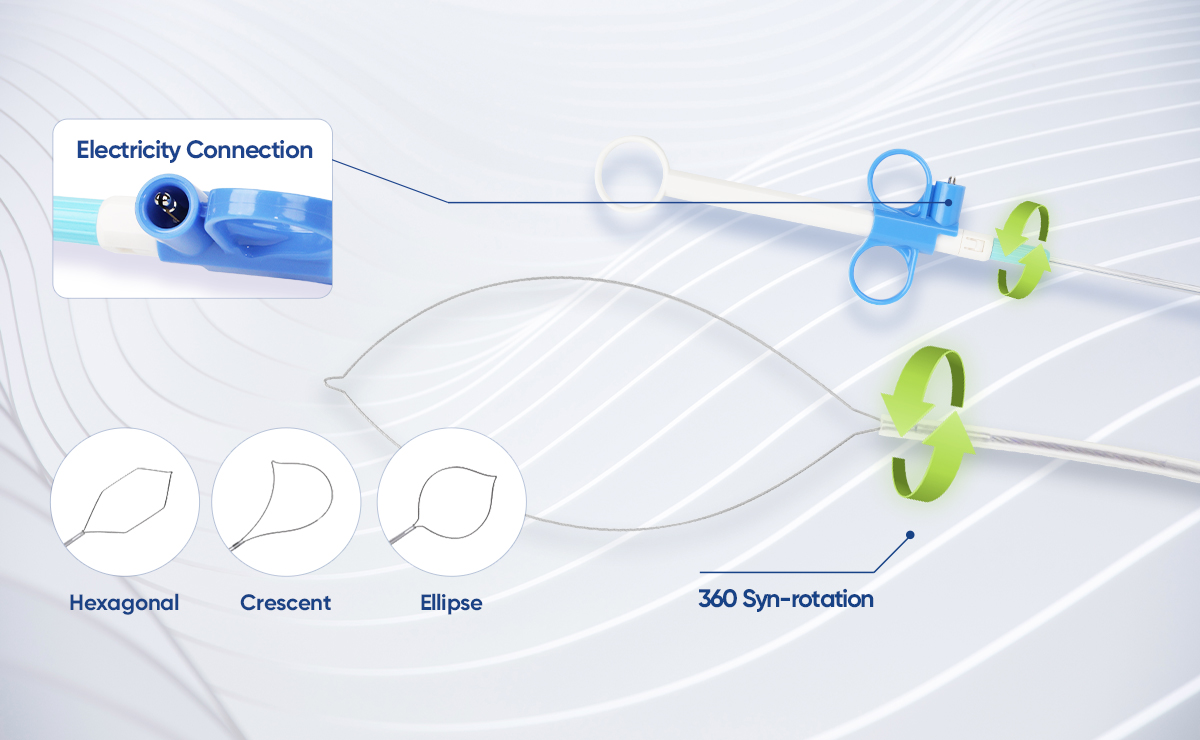

Removal of polyps or other excess tissues in the digestive tract used with diathermic energy combined with endoscope.
The snare has undergone synchronized calibration, enhancing operational efficiency.
Made from high-strength medical braided wire, it enables precise and rapid resection of polyps or other tissues.
With a standard electrical interface connection, it achieves notable hemostatic effects.
| No | Model Size | Diameter (mm) |
Length (mm) |
Loop opening （mm） |
Trape Shape |
Channel (mm) |
Operation |
| 1 | SD-T-2416-25 | φ2.4 | 1600 | 25 | Elliptical | ≥2.8 | Gastroscope |
| 2 | SD-T-2416-30 | 30 | |||||
| 3 | *SD-T-2416-35 | 35 | |||||
| 4 | SD-T-2423-10 | 2300 | 10 | Colonoscope | |||
| 5 | SD-T-2423-20 | 20 | |||||
| 6 | *SD-T-2423-25 | 25 | |||||
| 7 | SD-T-2423-30 | 30 | |||||
| 8 | *SD-T-2423-35 | 35 | |||||
| 9 | SD-T-1812-10 | φ1.8 | 1200 | 10 | Elliptical | ≥2.0 | Gastroscope |
| 10 | SD-T-1812-15 | 15 | |||||
| 11 | *SD-T-1812-20 | 20 | |||||
| 12 | SD-T-1812-25 | 25 | |||||
| 13 | SD-L-2416-25 | 1600 | 25 | Hexagonal | ≥2.8 | Gastroscope | |
| 14 | SD-L-2416-30 | 30 | |||||
| 15 | SD-L-2416-35 | 35 | |||||
| 16 | SD-L-2423-25 | 2300 | 25 | Colonoscope | |||
| 17 | SD-L-2423-30 | 30 | |||||
| 18 | SD-L-2423-35 | 35 |
* represents the common model.
