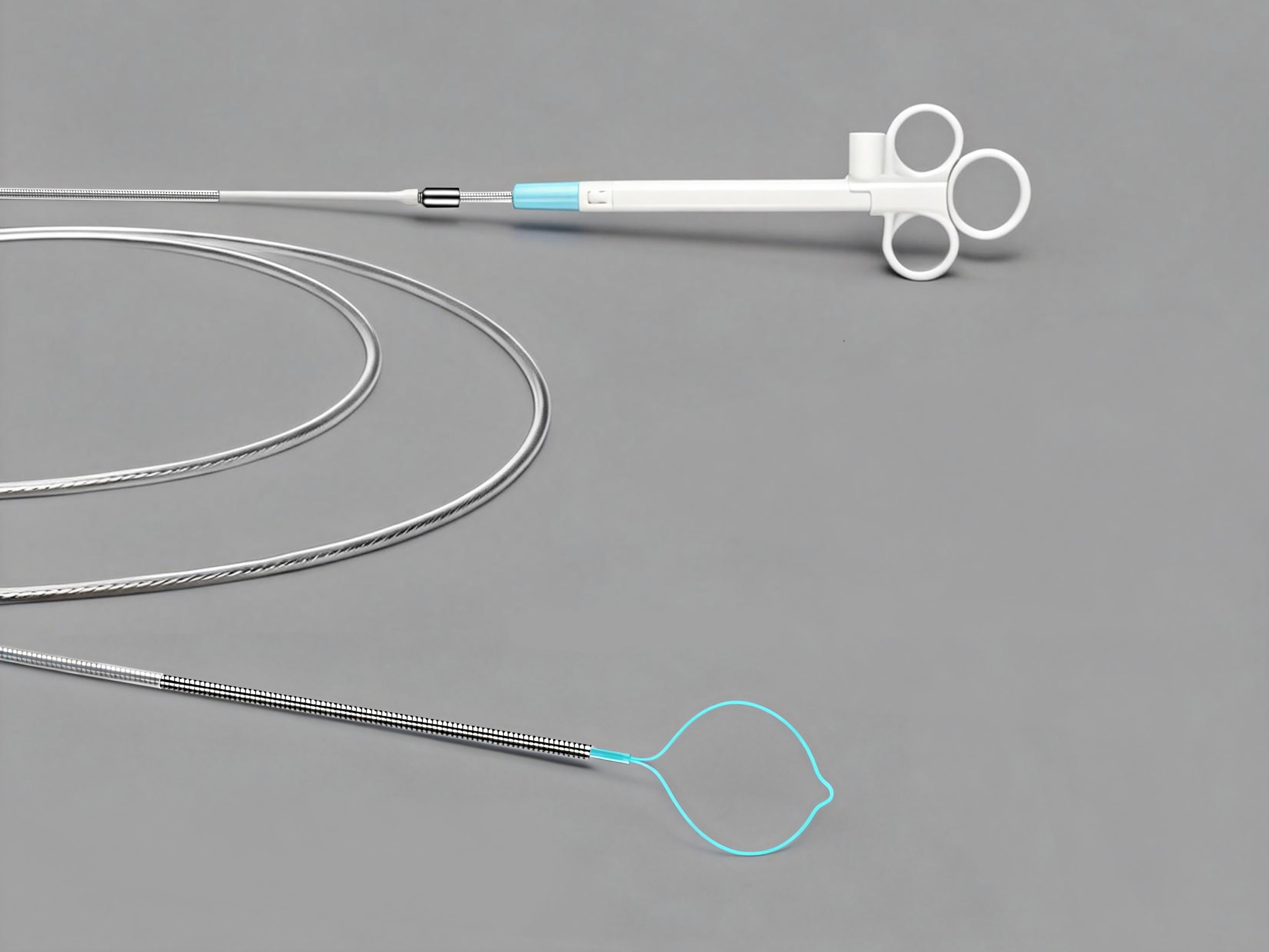

This device is designed to be used with Endoscopes in delivering a Ligation Loop designed to prevent or control bleeding following polypectomy of pedunculated polyps.

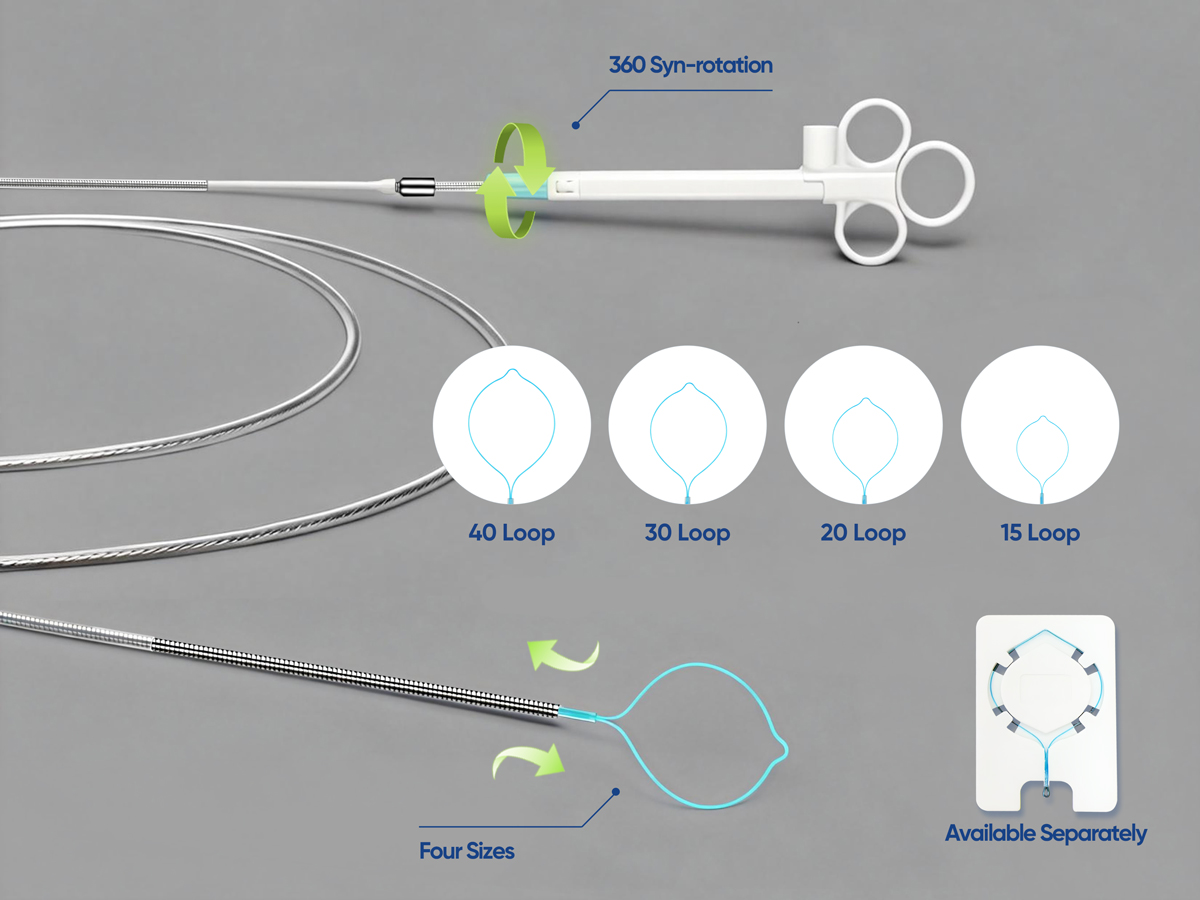

| Ligature Ring Models and Basic Dimensions (Detachable Type) | ||||
| Model |
Opening Width W/mm |
Height H/mm |
Polyamide Wire d/mm |
Sheath d1/mm |
|
RTLoop-15 |
15±3 |
36±5 |
0.44±0.05 | 2.1±0.2 |
| RTLoop-20 | 20±4 |
40±5 |
0.44±0.05 | 2.1±0.2 |
| RTLoop-30 | 30±4 |
55±5 |
0.44±0.05 | 2.1±0.2 |
| RTLoop-40 | 40±4 | 70±5 | 0.44±0.05 | 2.1±0.2 |
| Ligature Device Models and Basic Dimensions (Integrated Type) | ||||||
| Model |
Max Outer Diameter d/mm |
Effective Length L/mm |
Opening Width W/mm |
Height H/mm |
Polyamide Wire d1/mm |
Sheath d2/mm |
|
RTLD-165-15 |
Φ2.1±0.3 | 1650±50 | 15±3 | 36±5 | 0.44±0.05 | 2.1+0.2 |
| RTLD-165-20 | 1650±50 | 20±4 | 40±5 | |||
|
RTLD-165-30 |
1650±50 | 30±4 | 55±5 | |||
| RTLD-165-40 | 1650±50 | 40±4 | 70±5 | |||
| RTLD-195-15 | 1950±50 | 15±3 | 36±5 | |||
| RTLD-195-20 | 1950±50 | 20±4 | 40±5 | |||
| RTLD-195-30 | 1950±50 | 30±4 | 55±5 | |||
| RTLD-195-40 | 1950±50 | 40±4 | 70±5 | |||
| RTLD-230-15 | 2300±50 | 15±3 | 36±5 | |||
| RTLD-230-20 | 2300±50 | 20±4 | 40±5 | |||
| RTLD-230-30 | 2300±50 | 30±4 | 55±5 | |||
| RTLD-230-40 | 2300±50 | 40±4 | 70±5 | |||
